Folded Plate Truss

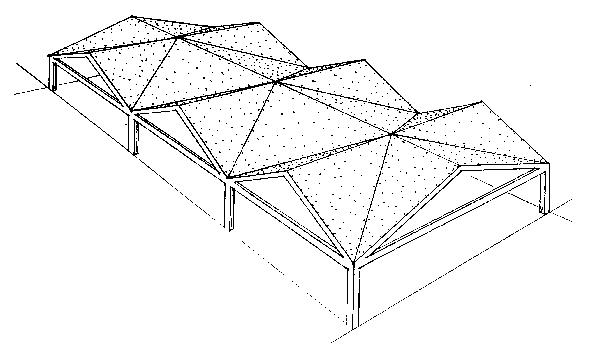

The term "folded plate truss" is intended to indicate the structural action of this structure. There are horizontal ties across the width only at the ends of the building and the structure acts as an edge supported shell as shown in the previous example. The thrusts from the triangular crossed arches are carried lengthwise to the ends. The top chord of the inclined truss is formed by the ridge member. The bottom chords are the ties at the base of the side gables and the diagonals are formed by the sloping valleys at the intersection of the gables and the triangular plates. The top longitudinal compression member may require some additional thickness to form a compression member of sufficient size to carry the compression force.

This is truly a space structure and its structural action is not as obvious and, therefore, the architectural appearance is mote subtle that the usual shell structure.
